基本参数/PARAMETER
| 工作温度 | －25℃＋125℃ |
| 额定负荷 | AC125V 6A/250V 6A |
| 绝缘阻抗 | 100mΩ 1Minute |
| 机械寿命 | 500,000Cycles |
| 接触电阻 |
≤100mΩ |
| 操作力 | 150±50gf |

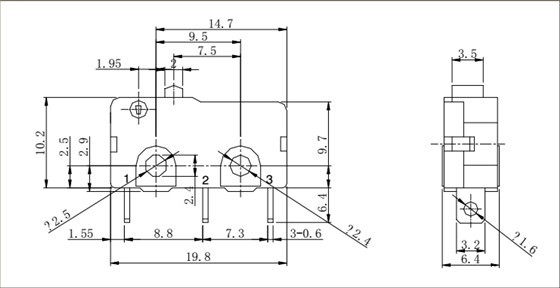

外形图/Specification
安装孔尺寸图/Mounting hole dimensions
电路图/Schematic
焊接条件/Welding conditions
